CSC Co., Ltd. is a company specialized for helping customers from coarse particle problem in Cleanroom.

Fan Filter Unit


Create clean area to protect you work from dust!!


CS-CUTE CF Series

　Compact & Slim!!
　Air Volume Adjustable!!
　Saving Energy!!
Clean Bench
 Clean Booth
Model No. CS-CUTE-10CF CS-CUTE-20CF
Air Flow ca. 5.3 - 10 ㎥/min ca. 10 - 19 ㎥/min
Filtering Efficiency More than 99.97% at 0.3μm particle
Size (mm) 610 x 610 x 155 610 x 1220 x 155
Weight ca. 11.5 kg ca. 22kg
Energy Consumption ca. 24 - 71 W ca. 50 - 150 W
Power Supply AC 100 - 240V Phase1 (50/60Hz)
Body Steel sheet(stoving coating)


Set up to clean booth or clean bench easily.
  Users can change filter by themselves easily.
※You can watch video shows how easy
to set it to clean bench and to change filter
by users themselves※
 Specification

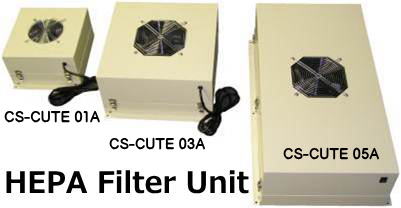

Model NSF-01A NSF-03A NSF-05A
Air Volume (50HZ/60Hz) 0.6 / 0.8 ㎥/min 2.6 / 3.2 ㎥/min 4.5 / 5.5 ㎥/min
Filtering Efficiency More than 99.97% at 0.3 μm particle
Dimensions (mm) 275 x 235 x 135 380 x 340 x 170 645 x 380 x 170
Body Steel Sheet (Stoving Coating)
Power Supply AC 100V (50/60Hz)
Power Consumption 15W 40W 40W
Weight 3 kg 6 kg 9 kg
Color Ivory

Specification

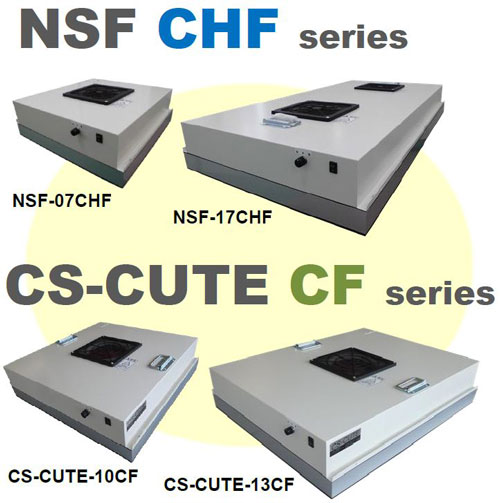

Model NSF-07-CHF CS-CUTE-10CF CS-CUTE-13CF CS-CUTE-20CF
NSF-07-CHF CS-CUTE-10CF CS-CUTE-13CF CS-CUTE-20CF
Air Volume
(Min - Max)		 3.5 - 7 ㎥/min 5.3 - 10 ㎥/min 8.5 - 12.5 ㎥/min 10 - 19 ㎥/min
Filtering Efficiency More than 99.97% at 0.3 μm particle
Dimensions (mm) 500 x 500 x 155 610 x 610 x 155 760 x 610 x 155 610 x 1220 x 155
Body Steel Sheet (Stoving Coating)
Power Supply AC 100-240V (50/60Hz)
Weight 9 kg 11.5 kg 13 kg 22 kg
Color White Grey


Application

  clean bench
  clean area to stock materials or workpieces.
  clean booth
